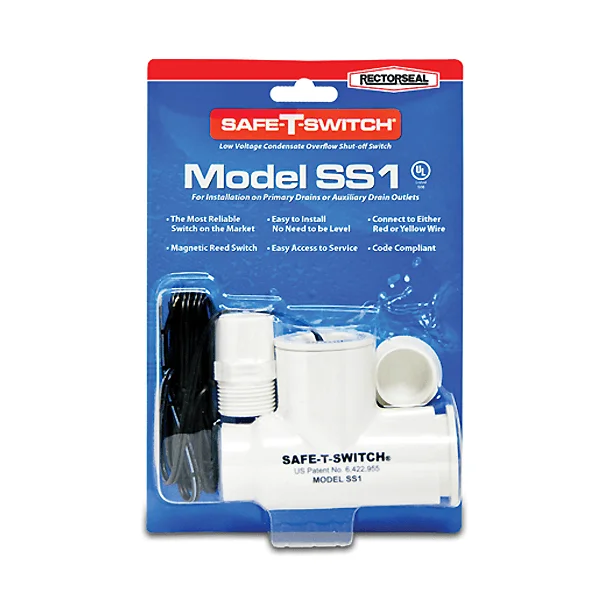

SS-1 Primary Inline Float Switch (Air Handler Drain Line)-Fast Shipping

Description

The SAFE-T-SWITCH SS-1 Primary Float Switch detects down stream clogs in condensate drains and interrupts the thermostat circuit to shut off the unit before flooding occurs. Works with Safe-T-Gard Model SG-1 condensate overflow alarm. The Model SS-1 installs inline at any downward slope from vertical to horizontal. It can also be installed on auxiliary pan outlets utilizing the plug included with the kit. PVC Tee body accepts a 3/4 inch slip PVC stub or drain pipe with included bushing. Compact footprint fits well in sloped drains and tight spaces.

r

Installation Options Include:

r

r
• Inline installation in primary condensate drains (vertical or horizontal)

r

• Auxilliary (safety) pan outlet installation with included plug and plugged installation on alternate primary drain outlets

r

r

Standard Features:

r

r
• Sealed, waterproof reed/magnet float switch

r

• Potted electrical contacts for reliable performance in wet environments

r

• Float resets automatically and after the drain is cleared

r

• 6 ft. lead wires are pre-wired and sealed requiring one electrical connection during installation (usually within the air handler electrical cabinet)

r

• UL Listed to comply with UL 508 and most applicable building codes

r

• Tested and listed for use in a 24-volt circuit at 1.25 amps 6000 cycles by Underwriters Laboratories

r

• All fittings needed for installation on 3/4 inch drains and threaded female pan outlets and a plug for installation on auxiliary drain pan outlets.

r

• Switch/cap assembly that removes easily to facilitate cleaning or clearing of clogged lines.

r

r

Specifications:

r

r
• 24 Volts A/C

r

• 1.25 Amp GP Switching Current (Tested and Listed by UL at 6000 Cycles – Inductive Load)

r

• Reed Component Device is Separately UL Recognized at 2.5 Amps Max. Carry Current.

r

• Schedule 40 PVC Slip Fittings Accept 3/4 inch Stub or Drain Line.

r

r

Package Includes:

r

r
• Pre-wired 6 ft. 18 Gauge Lead Wires

r

• 3/4 inch Schedule 40 PVC Slip Plug

r

• 3/4 inch Threaded Male x Slip Male Adapter

r

• 3/4 inch x 1 inch Reducer Bushing

r
