Description
FEATURES
| Cooktop Burner Type | 5 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner – Right Rear | 5,000 BTU |
| Burner – Right Front | 12,000 BTU |
| Fuel Type | Natural Gas (factory set) |
| Control Location | Front Center |
| Cooktop Type | Continuous Grates |
| Ignition System | Electronic |
| Burner – Center | 20,000 BTU Tri-ring Power Boil |
| Cooktop Surface | |
| Cooktop Control Features | Child Lock |
| Burner – Left Rear | 9,500 BTU |
| Control Type | Knob |
| Cooktop Burner Grate Material | Heavy Cast |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe Edge-to-Edge Grates |
| Griddle | Cast Iron Included |
| Burner – Left Front | 9,500 BTU |

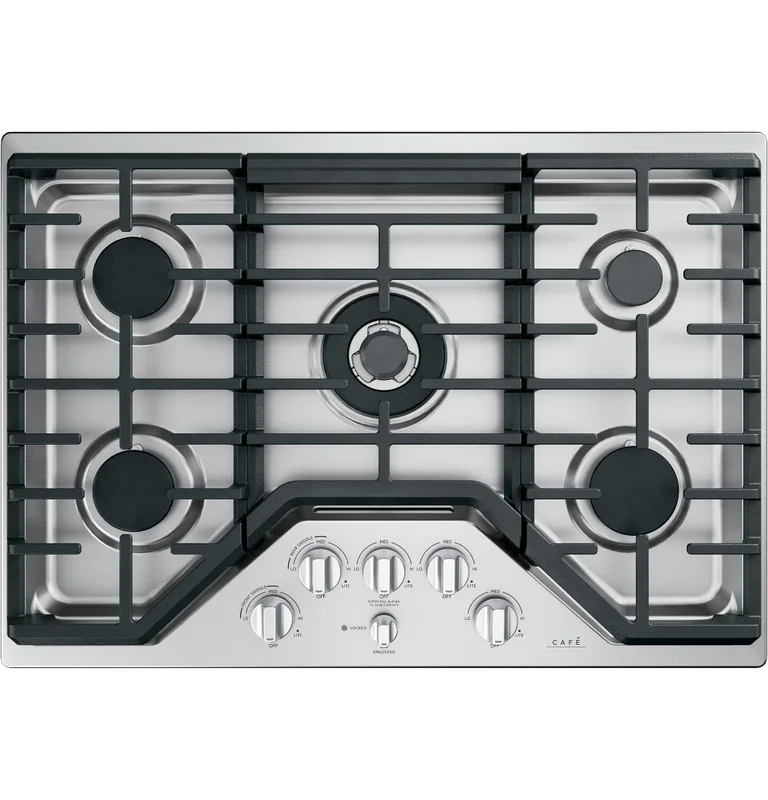

| Product Type | Cooktop |
APPEARANCE
| Color Appearance | Stainless Steel |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | Dishwasher Safe Stainless Steel Appearance White LED Backlit |
WEIGHTS & DIMENSIONS
| Overall Height | 5 1/2 |
| Cabinet Width | 30.00 |
| Approximate Shipping Weight | 51.00 |
| Cutout Dimensions (Width x Depth) (In.) | 28.00 |
| Overall Width | 30 |
| Net Weight | 45.00 |
| Overall Depth | 21 |
POWER / RATINGS
| Burner BTU Ratings (000’s/BTU) – LP Gas | (1) 18.0; (1) 12.0; (2) 9.5; (1) 5.0 |
| Burner BTU Ratings (000’s/BTU) – Natural Gas | (1) 20.0; (1) 12.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
ACCESSORIES
| Optional Kits | CXCG1K0PMBT Brushed Black CXCG1K0PMBZ Brushed Bronze CXCG1K0PMCU Brushed Copper |
| Stainless Steel Cleaner | Included |
| Griddle Accessory | JXGRIDL230 Included |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
CERTIFICATIONS
| Claims & Certifications | ADA Compliant California Prop 65 |
